About this item
- Pump Replacement Parts
Pump Replacement Parts
Specification:
3-chamber positive displacement diaphragm pump, self-priming, dry-running capable
Model: SFDP2-030-045-33
Control type: pressure switch and bypass control
Recommended maximum temperature 60 C140 F
Starting Capacity 1.8 m (6 ft) suction lift
Restart pressure: Shutoff pressure 45 PSI: 41 PSI ±5 PSI (±0.3 bar)
Inlet/Port: 1/2″-14 MNPT
Maximum current consumption: 4 A
Voltage: 24V

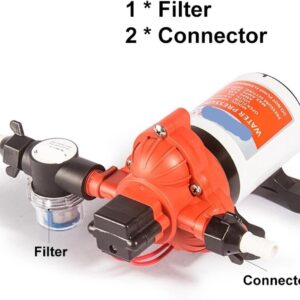

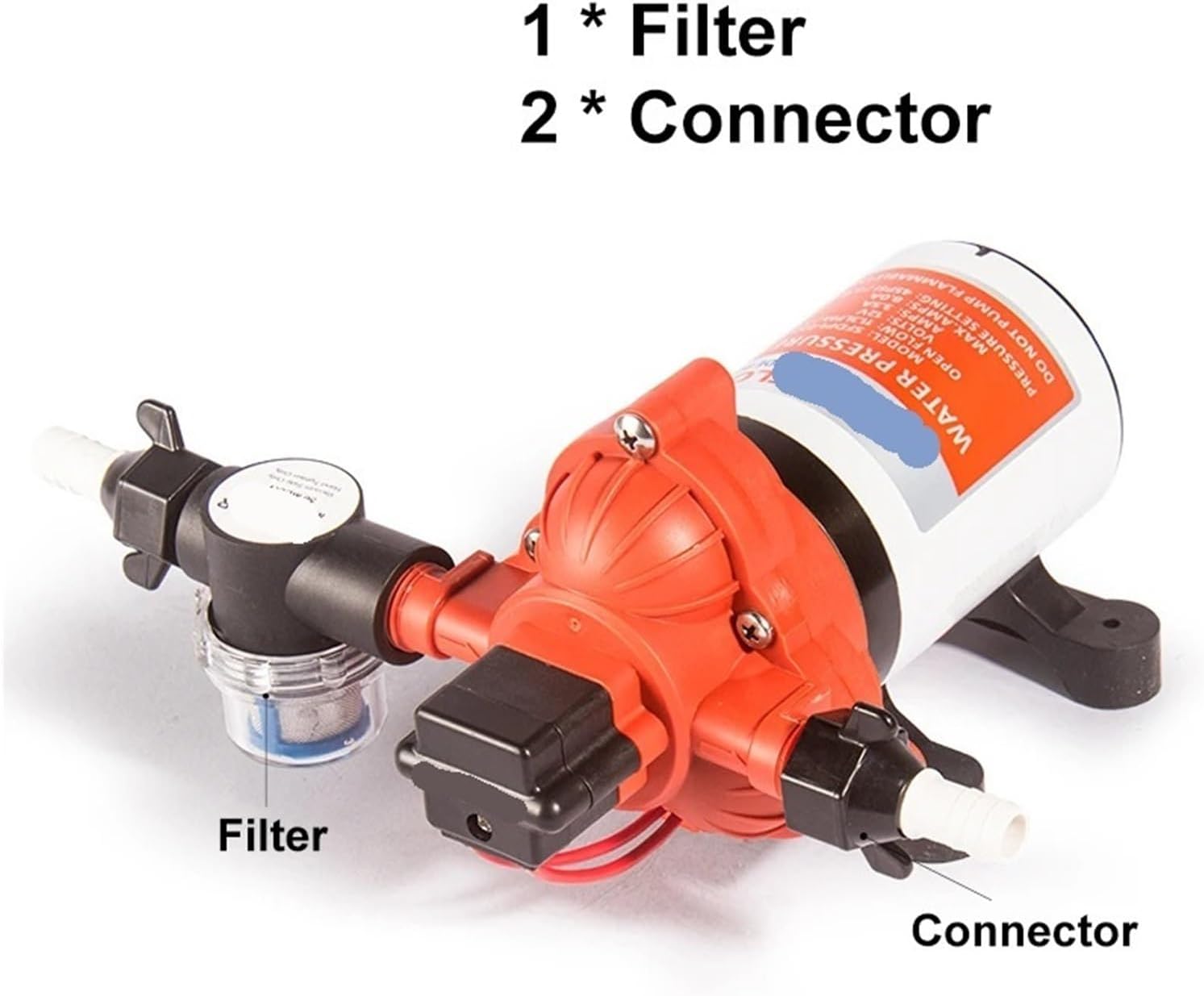

Package Included:
1 * Diaphragm pump
1 * Filter
2 * Connectors
=========
<; 500 gph
Certification: CE
Voltage: 24V
Model: SFDP2-030-045-33
Voltage: 24V DC

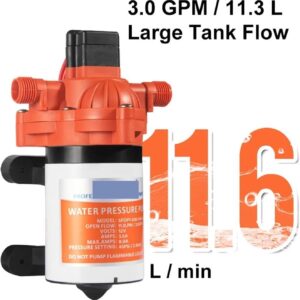

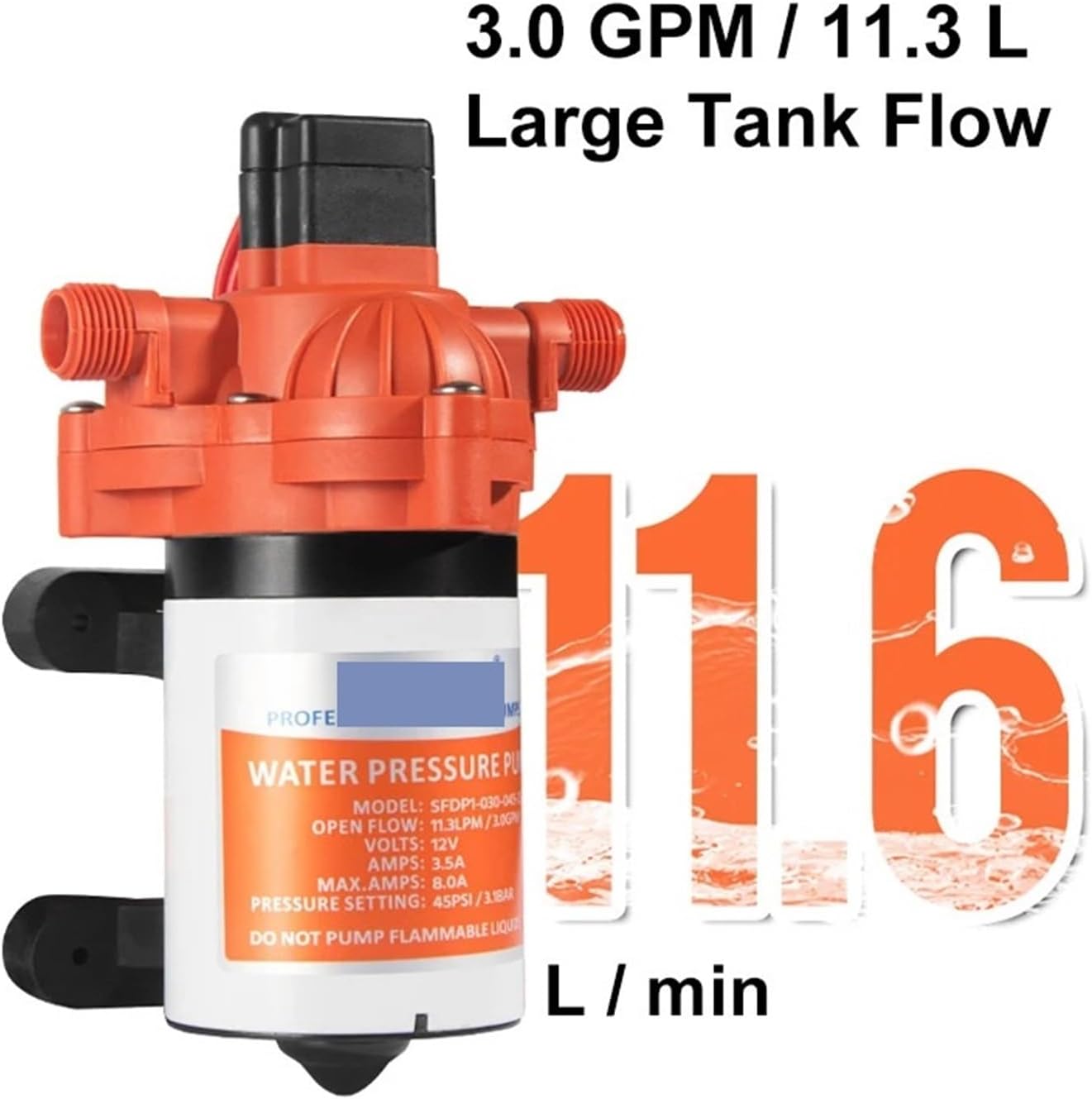

Open flow (GPM/LPM): : 3.0 / 11.6
Closing pressure (PSI/BAR): : 45 / 3.1
Control Type: : Switch
Maximum current: 4A
Wiring: 2 pins/leads
Port: 1/2″-14 MNPT
